Very High Power Broadband Master Oscillator Power Amplifier SLD. MOPA–SLD–910–P40W60–OEM. Typical Performance Examples.
PDF (57 KB)

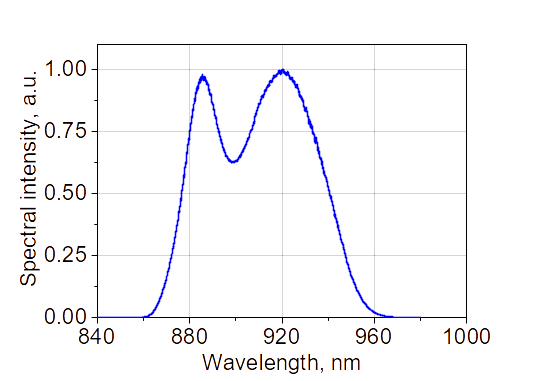

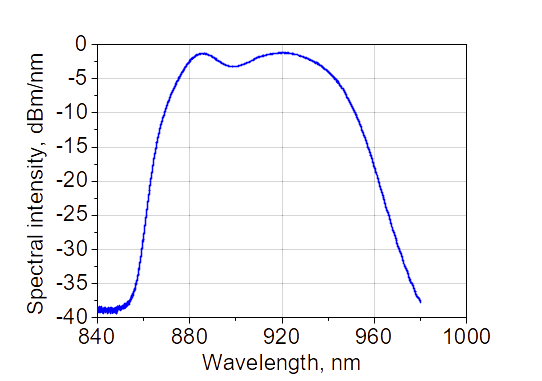

Spectrum at 45 mW output	Spectral density at 45 mW output

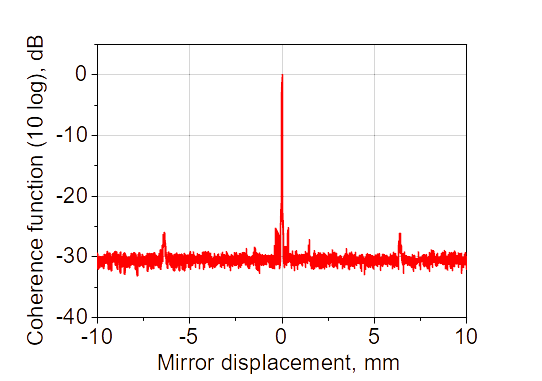

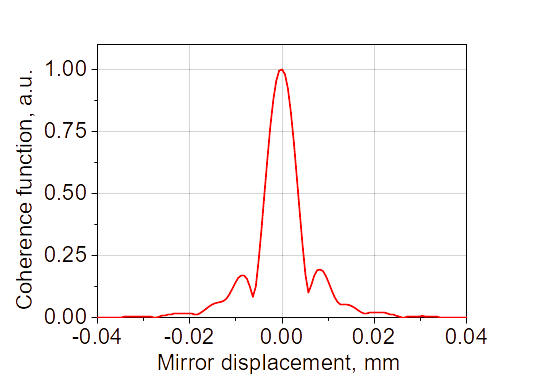

Coherence function at 45 mW output (extended displacement)	Coherence function at 45 mW output (short displacement)
Note : data shown are typical performance examples only. Performance parameters may slightly vary from sample to sample, always remaining within all specifications applicable. Every MOPA SLD light source is supplied with its own datasheet showing actual performance parameters before shipment. Upon request Superlum can forward such datasheets before delivery.
